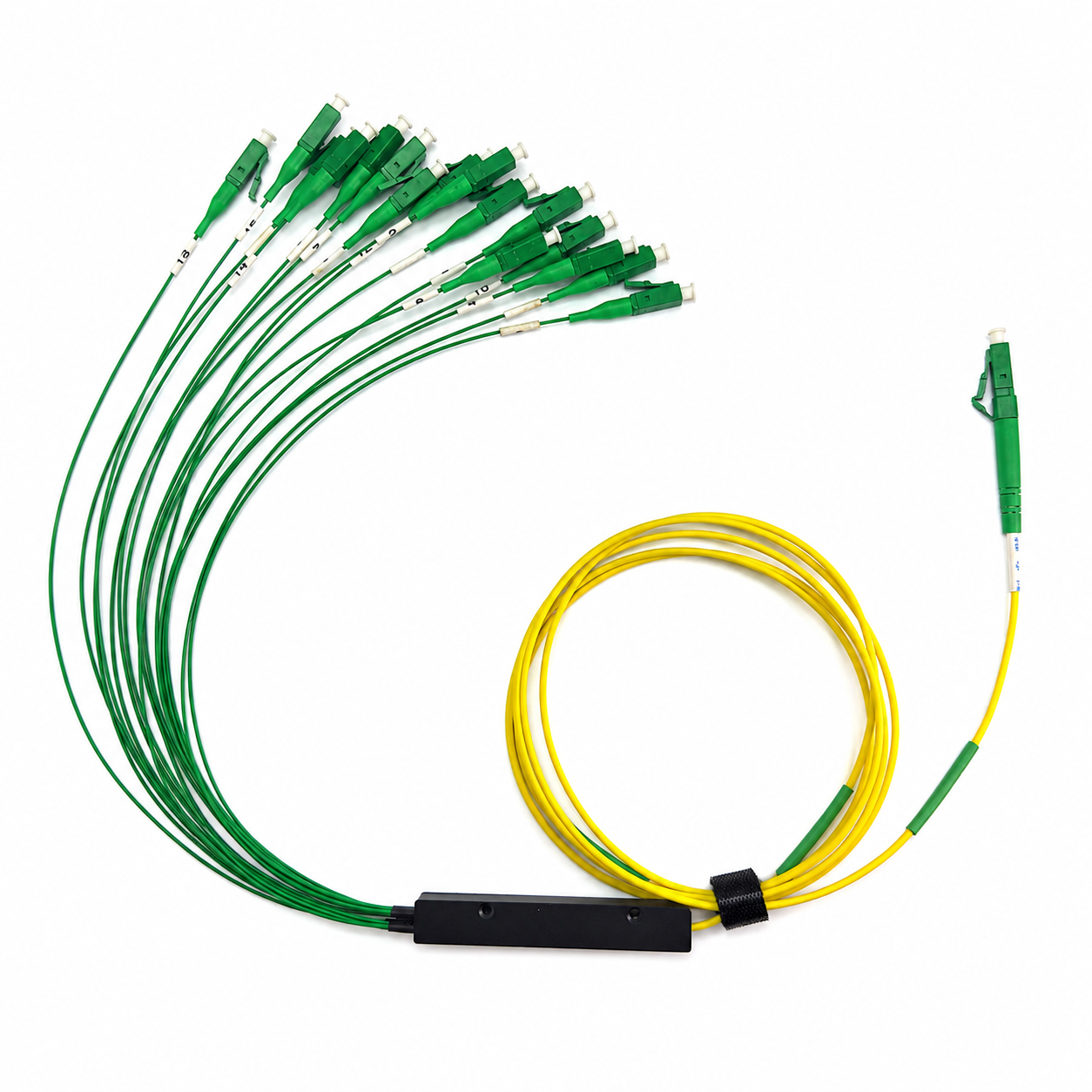

Fanout & Breakout Cable Assembly
Fanout & Breakout Cable Assembly covers split-out custom fiber cable designs, including one main cable to multiple branches, multi-fiber cable separated into individual legs, MTP/MPO to LC breakouts, cabinet or rack routing, ODF fanout, and drawing-based branch layouts. FiberNexa supports connector review, fiber count confirmation, branch count, leg length, labeling, optical testing, and private-label packaging for B2B buyers.
Select the cable structure first, then confirm connector, fiber count, branch layout, length, drawing or BOM, and quantity requirements through the RFQ workflow.
Optical Specifications
| Type | Single-mode UPC | Single-mode APC | Multimode UPC |
|---|---|---|---|
| Insertion Loss | 0.20dB typical | 0.20dB typical | 0.20dB typical |
| Return Loss | 50dB | 60dB | 25dB |
| Test Wavelength | 1310nm & 1550nm | 1310nm & 1550nm | 850nm & 1300nm |
Order Codes
Fanout and breakout cable assembly with MTP main connector, 12F main cable, 6 LC duplex branches, UPC polish, 0.5M leg length, OS2 LSZH 10M total cable length, quantity 50 pcs, BOM and branch labels required.
Applications
- One main cable split into multiple branch outputs
- Multi-fiber cable assemblies broken out into individual connectorized legs
- MTP/MPO to LC breakout cable assemblies for high-density equipment links
- ODF, rack, cabinet, and fiber distribution frame routing where labels and branch sequence matter
Features
- One main cable to multiple connectorized branches, or multi-fiber cable separated into individual connector legs
- MTP/MPO to LC, ODF fanout, rack, cabinet, and equipment-side breakout layouts
- Main connector, branch connector type, fiber count, branch count, branch fiber count, and leg length reviewed per project
- A side polish and branch connector polish can be confirmed for UPC/APC connector interfaces where applicable
- Drawing-based OEM/ODM quotation support for branch layout, labels, packaging, polarity notes, and test report requirements
- Factory-terminated fanout and breakout cable assemblies for B2B telecom, ODF, equipment-side, and private-label projects
Specification Review
- Cable Structure: Fanout / Breakout / MTP-MPO to LC / Custom branch layout
- Main Connector: LC / SC / FC / ST / MU / E2000 / MTP / MPO / Custom
- Branch Connector Type: LC / SC / FC / ST / MU / E2000 / Custom
- Main Fiber Count: 4F / 8F / 12F / 24F / 48F / Custom
- Branch Count: 2 / 4 / 6 / 8 / 12 / 24 / Custom
- Connector Polish: UPC / APC where applicable
- Leg Length: Custom branch or breakout length
Standards Compliance
- TIA/EIA-568 and ISO/IEC 11801 references
- IEC connector interface references
- RoHS / REACH support upon request
- Factory inspection before shipment
Configurable Product
Order code selections cover type, connector gender, MT connector, fiber type, cable type, jacket, color, and total length.
Optical Specs Listed
MM and SM Level-II / Level-III insertion loss, return loss, and test wavelength are shown for procurement review.
B2B RFQ Flow
No checkout and no public price. Send the order code, project quantity, and destination for quote support.
